IYASOCARE YSE203 Foldable Electric Stair Climbing Wheelchair – Redefining Mobility Accessibility

15 Steps/Min Electric Stair Climber - 500-Step Vertical Traversal, Compact Folding Design for Home & Commercial Mobility

  • 500+ Stairs Climbed Per Charge
  • Dual Electric Drive System (Climbing + Driving)
  • 20Ah Lithium Battery, 15KM Range

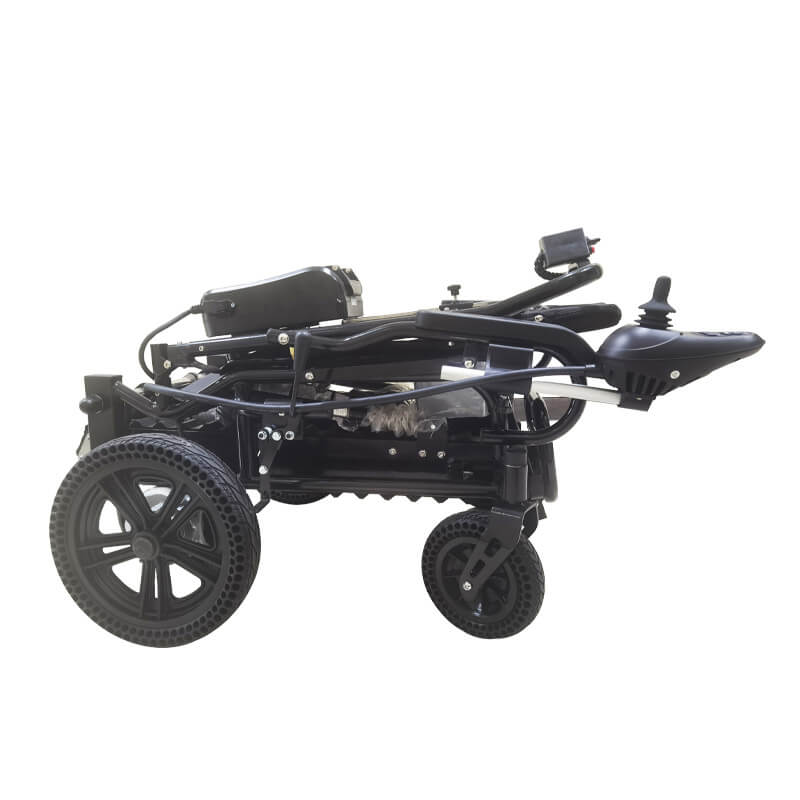

  • 3-Second Folding for Storage/Transport
  • Universal Controller for All Terrains

Category: Electric wheelchairStair climbing wheelchair

Certified: ISO 13485CETÜV

WhatsApp Us Email Us Call Now
Payment Options: Visa/Mastercard, PayPal, Bank Transfer (T/T), L/C, RMB. Contact us for custom payment arrangements.
  • Product Description
  • Dimensions & Packaging

Specifications Details:‌

Factory Direct Customizable according to needs OEM wheelchair manufacturer

Specification:

  • Driving Range:15KM
  • Max Speed:8KM/h
  • Battery: 20Ah lithium
  • Driving motor: 24V 250W*2
  • Climbing motor: 24V 250W
  • Cushion: Artificial leather
  • Climb speed: 15 stair steps/Min
  • Climbing ability: 500 stairs steps
  • Stair width required: ＞700mm
  • Stair depth required: ＞1100mm
  • Stair slope required:＜45°

Size:

  • Seat width: 44cm
  • Seat depth: 44cm
  • Seat height: 44cm
  • Backrest height: 78cm (without pillow), 86cm (with pillow)

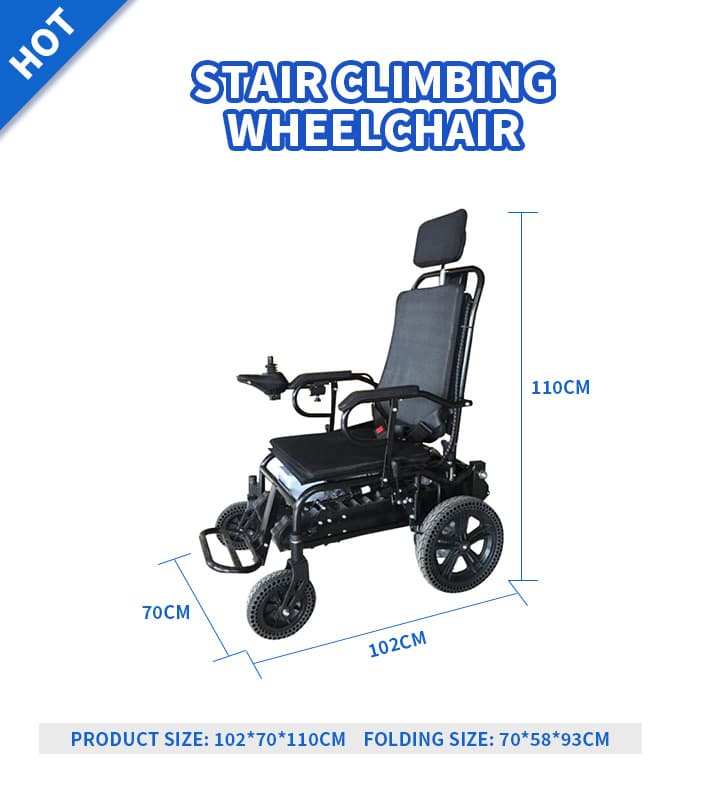

  • Product size: 102*70*110cm
  • Folding size: 70*58*93cm
  • Rear wheel size: 12 inches
  • Front wheel size: 7.5 inches
  • N/G: 60/69kg
  • Frame Material: Steel
  • Load: 150kg
  • Package Size:103*73*77cm
  • Wooden box packing 88kg

Features:

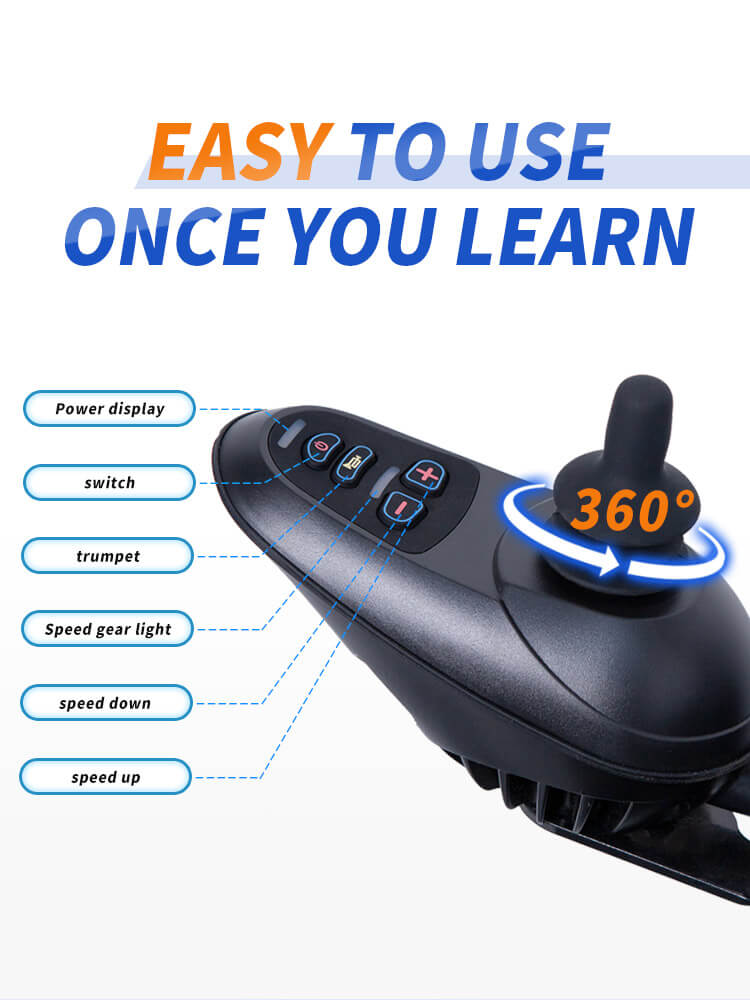

  • Universal controller
  • Multifunctional height adjustable folding wheelchair for stair climbing
  • Textile breathable sponge cushion, pillow adjustable
  • Electric driving and electric climbing dual use

Product Overview

The IYASOCARE YSE203 Foldable Electric Stair Climbing Wheelchair is engineered to solve mobility challenges in multi-story environments. As a B2B-focused manufacturer (OEM/ODM available), we prioritize durability, safety, and ease of use for global wholesalers, medical institutions, and caregivers. This model combines crawler-type stair climbing technology with a 24V dual-motor system (250W climbing motor + 250W×2 driving motors), enabling smooth navigation of stairs with slopes <45° and depths >1100mm.

YSE149 size YSE149 size YSE149 Showcase YSE149 Controller YSE149 Fold YSE149 Fold YSE149 Fold

Powerhouse Performance Specifications

  • Stair Mastery: Proprietary crawler track system handles staircases up to 45° slope, requiring only 700mm width x 1100mm depth per step
  • Endurance System: 20Ah lithium battery powers 15km continuous driving or 500-step stair climbing sessions
  • Motor Array: Dedicated 24V 250W climbing motor + twin 24V 250W drive motors for seamless terrain transitions
  • Load Capacity: Robust steel frame supports users up to 150kg (330lbs)

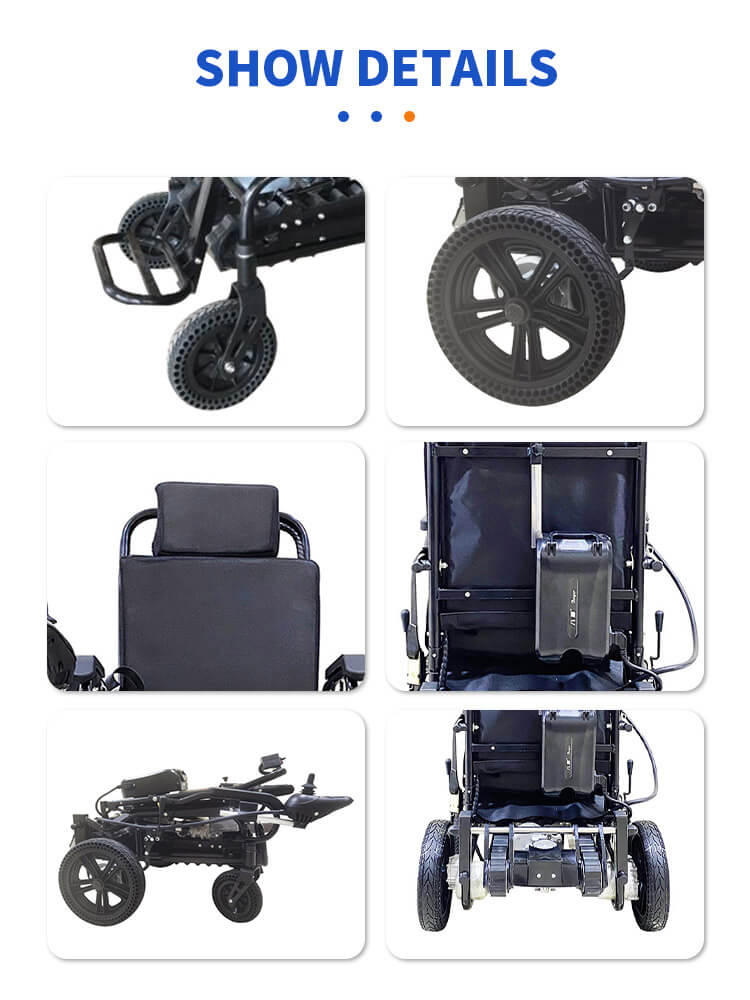

Space-Saving Innovation

The foldable design reduces storage footprint by 40% (from 102×70×110cm to 70×58×93cm) while maintaining:

  • Artificial leather cushion with breathable sponge core
  • Adjustable pillow system (78-86cm backrest height)
  • 12-inch rear wheels for stable urban mobility

B2B-Focused Features

  • Universal controller compatible with standard mobility interfaces
  • Wooden crate packaging (88kg gross weight) for secure international shipping
  • Textile components meet hospital-grade sanitation standards
  • CE/FDA compliant documentation available for institutional procurement

Target Markets Ideal for:

  • Medical equipment wholesalers expanding mobility aid portfolios
  • Hospital/care home facilities requiring versatile intra-building transport
  • Rehabilitation centers with multi-level accessibility needs
  • Pharmacy chains seeking premium mobility solutions

Key Features for B2B Partners

  • Stair Climbing Mastery: Climbs 15 steps/minute (500 steps per charge) using anti-slip rubber tracks, ideal for hospitals, nursing homes, and commercial buildings.
  • Power & Efficiency: 20Ah lithium battery supports 15KM driving range at 8KM/h, with quick-release design for easy replacement.
  • Space-Saving Design: Folds to 70×58×93cm in 3 seconds, reducing logistics costs for bulk orders (wooden box packing: 88kg).
  • Universal Adaptability: Adjustable cushion height, breathable textile sponge seat, and detachable pillow cater to diverse user needs.

Why Choose IYASOCARE YSE203?

  • Global Compliance: CE/FDA-ready designs for seamless market entry.
  • Scalable Production: In-house R&D and factory capacity for bulk orders.
  • After-Sales Support: 24/7 technical assistance + spare parts warranty.

Target Markets

  • B2B Clients: Distributors, hospitals, rehabilitation centers, pharmacies.
  • End-Users: Elderly, disabled individuals, and post-surgery patients needing stair access.
