Chongqing Iyasocare Medical Co., Ltd.

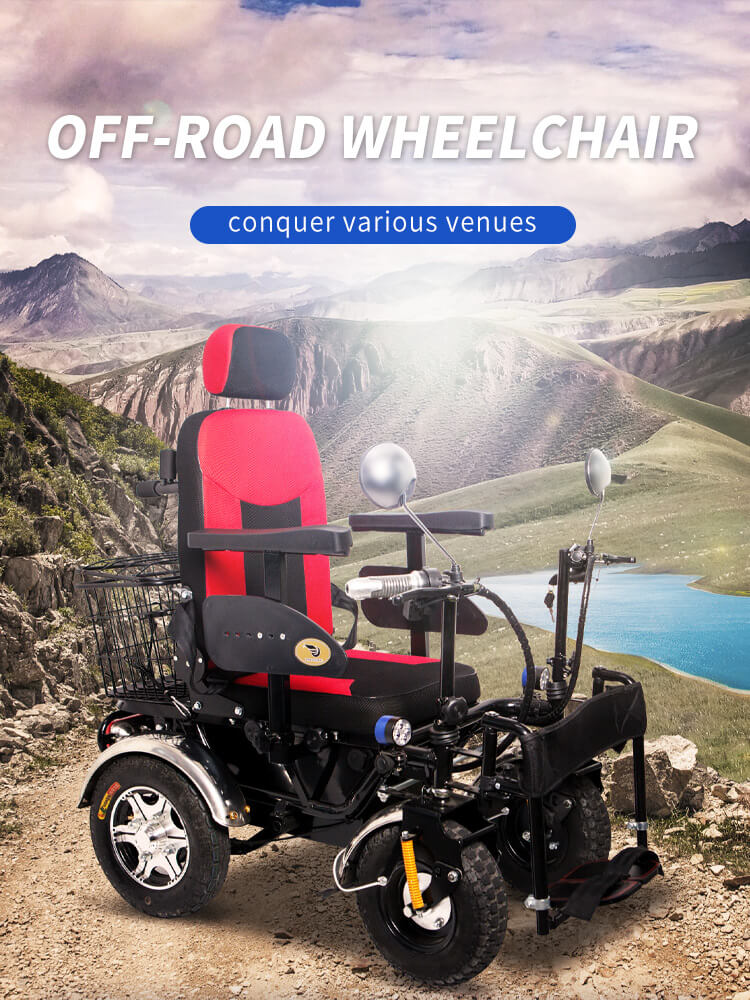

YSE102 All-Terrain Electric Wheelchair: Redefine Mobility Boundaries Load 200KG

Engineered for Adventure: Professional-Grade All-Terrain Wheelchair with F1-Inspired Performance & Military-Grade Durability

  • 15° Off-Road Climbing Capacity
  • 75km Long-Range Lithium Battery Option
  • 200kg Heavy-Duty Steel Frame
  • 180° Flat-Lying Adjustable Seat
  • 10cm Stair-Climbing & Anti-Slip Tech
  • 48V 600W Motor (60V Upgradeable)
  • 10" Front & 14" Rear All-Terrain Wheels
  • Dual Brake System (Mechanical/Electromagnetic/Disc)
  • Modular Customization for B2B Needs

Category: Electric wheelchairOff road wheelchair

Certified: ISO 13485CETÜV

WhatsApp Us Email Us Call Now
Payment Options: Visa/Mastercard, PayPal, Bank Transfer (T/T), L/C, RMB. Contact us for custom payment arrangements.
  • Product Description

Technical Specifications :‌

Factory Direct Customizable according to needs
  • Charge Time: 8-10 Hours (Fast Charge Compatible)
  • Driving Range: 35-75km (Battery-Dependent)
  • Max Speed: 20 km/h (Adjustable via Controller)
  • Climbing Capacity: 15° Incline Rating
  • Motor: 48V 600W Differential (60V Upgrade Available)
  • Battery Options:
    • ▸ 48V 20Ah Lead-Acid (35km Range)
    • ▸ 48V 32Ah Lead-Acid (55km Range)
    • ▸ 60V 30Ah Lithium (75km Range)
  • Braking System: Dual Rear Drum Brakes (Electromagnetic/Disc Brake Add-Ons)
  • Load Capacity: 200KG (Medical-Grade Certified)

Dimensions & Packaging

  • Seat Dimensions: 45cm(W) x 45cm(D) x 56cm(H)
  • Backrest Height: 78cm (Ergonomic Lumbar Support)
  • Product Size: 129cm(L) x 70cm(W) x 124cm(H)
  • Wheel Sizes: 14" Rear / 13" Front (Anti-Slip Tread)
  • Packing: 115x65x60cm Export Carton (137KG Gross Weight)
  • Frame Material: Reinforced Steel (Corrosion-Resistant Coating)

Key Features

  • 15° Incline Mastery - Engineered for steep ramps/uneven terrain
  • 10cm Stair Climbing - Cross vertical obstacles with ease

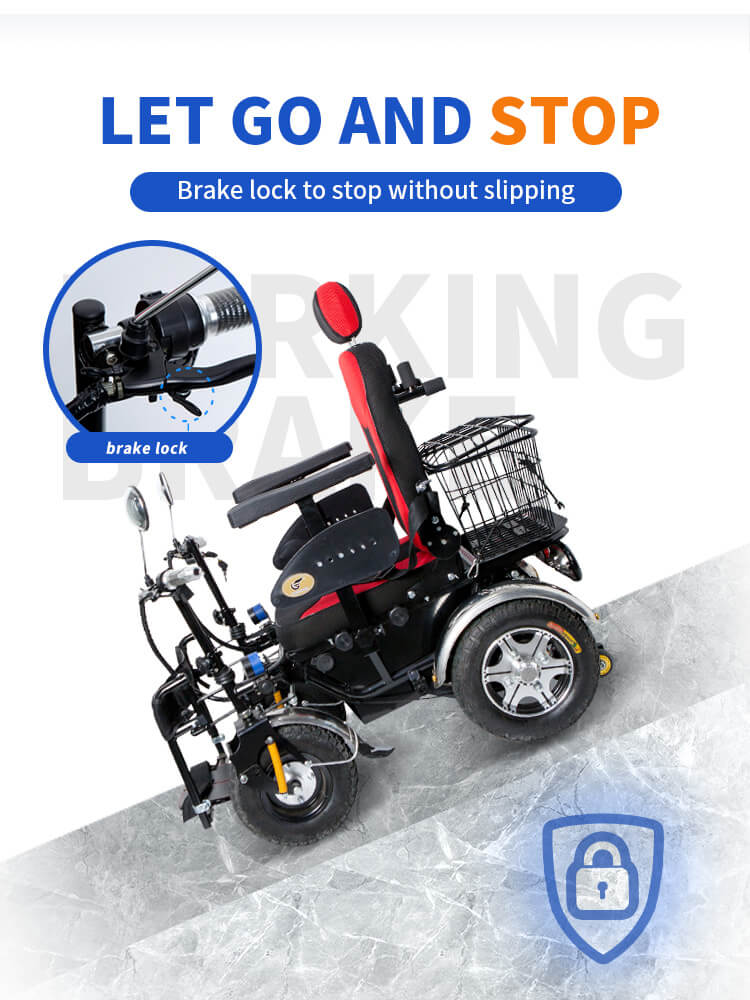

  • Anti-Rollback System - Patented slope-locking mechanism

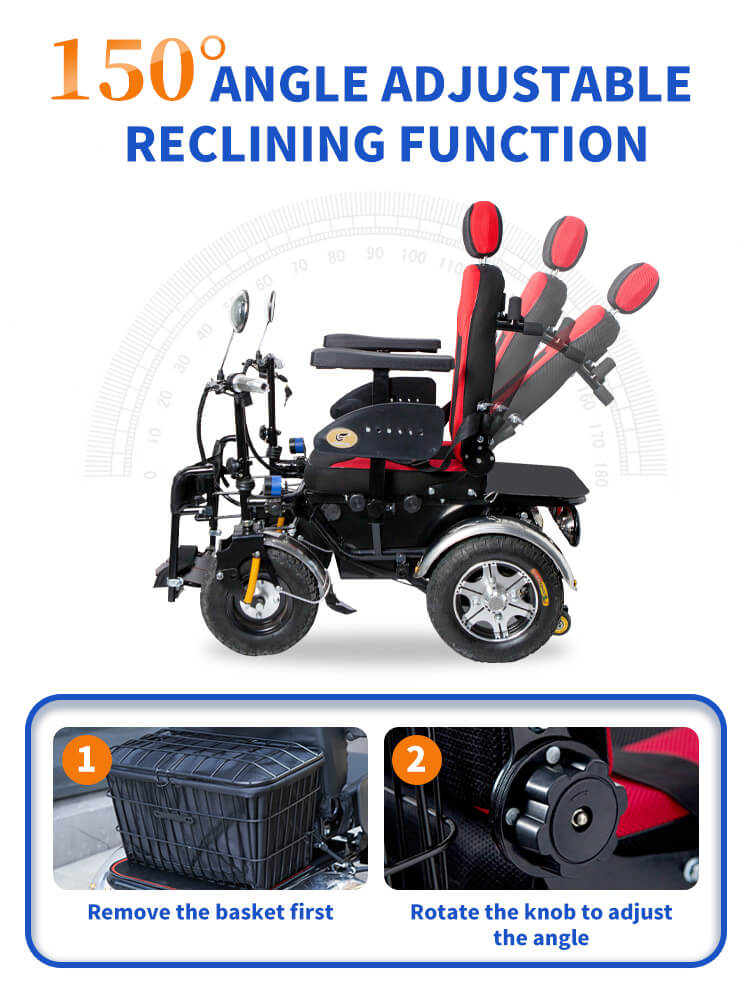

  • 180° Reclining Seat - Full flatbed position for medical transfers
  • USB/Safety Kit Included - Standard charging port + retractable belt
  • B2B Add-Ons:
    • ▸ Selfie Stick Mount (VESA Compatible)
    • ▸ Custom Storage Baskets (30KG Capacity)

Customization Options

  • Powertrain: 60V Motor Upgrade (+15% Torque)
  • Braking: Disc/Electromagnetic Brake Retrofit
  • Battery: Lithium-Ion Swap (75km Range)
  • Color: Red Cushion (Other Colors POA)
  • Accessories: Custom Branding & OEM Packaging
